New Shuttleworth 40' racer/cruiser trimaran design

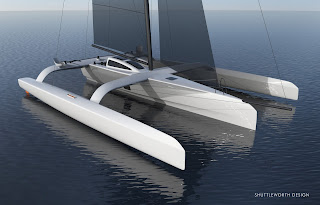

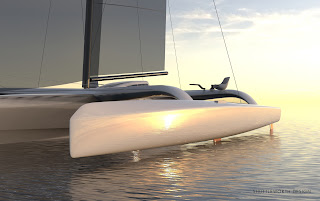

Well I wasn't planning on doing more updates here but sometimes I see some projects come over my desk that are so beautiful and worthy that they demand sharing.  One of these is a new trimaran design by the Shuttleworth design team for a UK client.  Intended to compete in the Round Britain and Ireland race but also provide reasonably comfortable accommodation for the crew whilst racing or cruising.

 It's in the early build stages in Asia construction method is foam/carbon.

Shuttleworth design can be contacted here:

The specs:
racer/fast cruiser...
39x32
target race weight w crew 2300k-2500kg
designed with 18.6m mast
floats 300% buoyancy
straight boards in the floats
rudders on the floats
VPP 14+ knots at 85 deg
downwind 25+ knots
Sail area: Main 75sqm Jib 35 sqm
Canting rig

double berth aft w 600mm ''turning over height"
double for'd
single cots either side in saloon
